The S922 is specifically designed for off-site time management, such as construction sites, logistic industries, large farms, and the mining industry. There is a handle at the top of the rubber coating, which enables users to carry it easily.

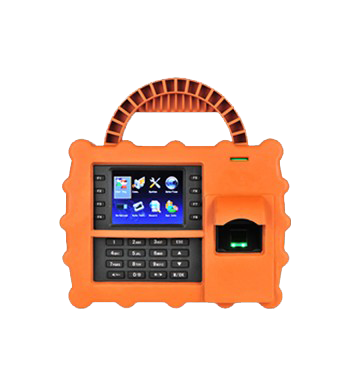

The S922 is a unique portable fingerprint time attendance terminal with a rubber coating. It is specifically designed for off-site time management, such as construction sites, logistic industries, large farms, and the mining industry. Adopting a rubber coating process, its waterproof and dustproof efficacy reached an IP65 protection grade. There is a handle at the top of the rubber coating, which enables users to carry it easily. Above all, the S922 is shockproof (1m above the ground) due to its unique rubber coating.

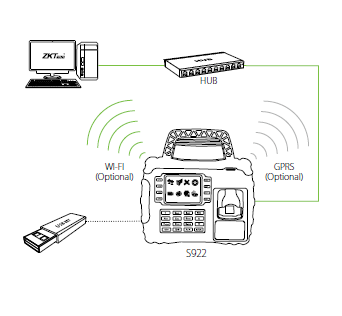

TCP/IP and USB-host are standard communication modes. It also has options for GPRS, Wi-Fi and 3G (WCDMA) connectivity, which makes data management extremely convenient. The S922 can be used in multiple authentications that support fingerprint, Proximity card or Mifare card.
Backup Battery
Rugged Enclosure
IP65
Fingerprint
GPRS/3G
RFID
| Display | 3.5-inch TFT Screen |
| Fingerprint Capacity | 5, 000 (Standard)/10,000 (Optional) |
| Card Capacity | 30,000 (ID Card) |
| Transaction Capacity | 200,000 |
| Fingerprint Sensor | ZK Optical Sensor |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | TCP/IP, USB-host ; Optional with Wi-Fi, GPRS,3G (WCDMA) |
| Standard Functions | ADMS, Work-code, DST, Self-Service Query, Automatic Status Switch, T9 Input, Photo-ID, 9 Digit User ID, Short Message, ID Card |
| Optional Functions | HID /Mifare Card |
| Protection Grade | IP65 |
| Power Supply | 12V 3A DC; Built-in Backup 7600 mAh Battery |
| Operating Temperature | 0 ºC- 45 ºC |
| Operating Humidity | 20%-80% |
| Dimension | 225 x235x125(mm) HxWxD |
S922
AC Power Adapter
Network Cable
Backup battery
