MA300, one of the innovative biometric attendance readers for access control applications. Offered unparalleled performances by adopting an advanced ZK fingerprint algorithm for reliability, precision and excellent matching speed.
It is metallic casing and IP65 RATED which enables it to be resistant from water, dust and other outside damages.

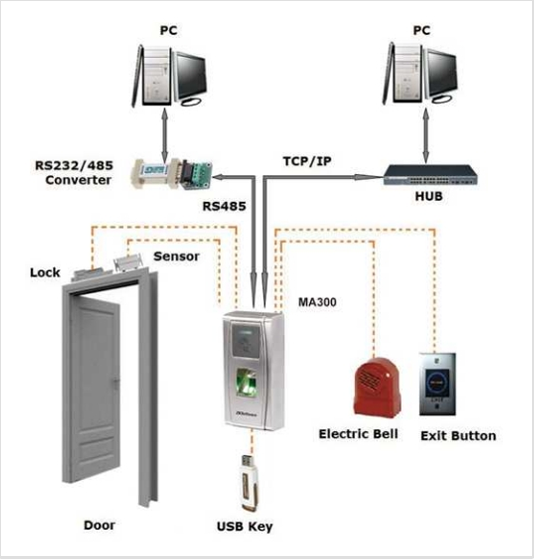

MA300 offers the flexibility to be INSTALLED standalone or with any third party panels that support 26-bit Wiegand. User can be enrolled by the administrator card when the device works in standalone mode.TCP/IP and RS485 are available, so that the device can be connected easily and conveniently.
| Fingerprint Capacity | 1,500 templates |
| ID Card Capacity | 10,000 |
| Transaction Capacity | 100,000 |
| Hardware Platform | ZEM700 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | RS485,TCP/IP,USB-host |
| Access Control Interface | 3rd party electric lock, door sensor, exit button, alarm |
| Wiegand Signal | Input & Output |
| Standard Access Control Function | Time Zone, Group, Anti-passback, external USB keypad |
| Optional Functions | Mifare, HID |
| Display | N/A |
| Power Supply | 12V DC |
| Operating Temperature | -10 °C- 60 °C |
| Operating Humidity | 10%-90% |
| Protection Grade | IP65 |
| Dimension(W*H*D)mm | 73×148×34.5 |
| Gross Weight | 1.15kg |
MA300 Cables
MA300 Diode (FR107)
MA300 Installation Guide
MA300 Quick Start Guide
MA300 Mini USB cable
MA300 Screw driver
MA300 Screws
